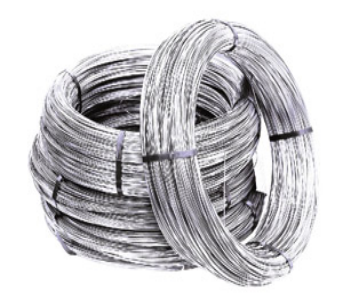

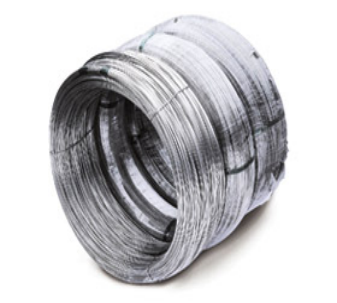

不锈钢硬亮丝
Stainless steel bright wire
不锈钢硬亮丝，又称不锈钢轻拉丝，是通过特定的冷拉工艺和表面处理工艺生产的高精度不锈钢丝材，使用该工艺生产出来的丝材兼具优异的表面光泽度和力学性能，广泛应用于丝网制造、建筑、装饰、汽车配件和高端家居等行业。
Product Overview: Stainless steel bright wire, also known as stainless steel light brushed wire, is a high-precision stainless steel wire produced through specific cold drawing and surface treatment processes. This wire combines excellent surface luster with superior mechanical properties and is widely used in industries such as mesh manufacturing, construction, decoration, automotive parts, and high-end home furnishings.
二、生产工艺Production Process
使用伺服系统实时调节张力，对原材料线材进行渐进式减径拉拔，既保证了线材拉拔的稳定性，又确保了丝径公差整体控制在±0.01mm内，
Production process: The servo system is used to adjust the tension in real time, and the raw material wire is gradually reduced in diameter. This not only ensures the stability of wire drawing, but also ensures that the overall wire diameter tolerance is controlled within ±0.01mm.
三、产品参数（见下表）Product Parameter
1.常见的材质类型Common material types
|
牌号 |
化学成分chemical component% |
材质特性 |
|||||||||
|
TYPE |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
Cu |
Others |
Material properties |
|
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
8.0-10.0 |
- |
- |
- |
良好的耐蚀性 |
|
304L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
8.0-10.0 |
- |
- |
- |
良好的焊接性 |
|
316 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
- |
- |
耐蚀性优于304 |
|
316L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
- |
- |
耐蚀性优于316 |
|
201 |
0.12 |
1.00 |
7.5-10.0 |
0.045 |
0.03 |
13.5-16.0 |
3.5-5.5 |
0.5 |
- |
- |
较好的冷加工性 |
|
D669 |
0.15 |
1.00 |
11.5-16.0 |
0.05 |
0.03 |
10.5-12.5 |
2.0 |
- |
0.6-1.2 |
- |
较好的冷加工性 |
|
D900 |
0.15 |
1.0 |
12.0-16.0 |
0.05 |
0.03 |
11.0-14.0 |
2.0 |
- |
1.0 |
- |
较好的冷加工性 |
2.产品特性Product Features
|
技术指标 Technical index |
数据指标 Data index |
行业优势 Industrial advantage |
|
表面光洁度 surface smoothness |
Ra≤0.4μm（镜面级） Ra≤0.4μm (mirror level) |
超越普通抛光工艺（Ra≤0.8μm） Surpassing the common polishing process (Ra≤0.8μm) |
|
尺寸精度 dimensional accuracy |
0.5mm-6.0mm（±0.01mm）
|
符合高端制造公差要求 Meet the tolerance requirements of high-end manufacturing |
|
力学性能 mechanical property |
抗拉强度≥800Mpa Tensile strength ≥800Mpa |
兼顾强度与加工性 Balance strength and processability |
|
环保 environmental protection |
无重金属残留 No heavy metal residue |
符合欧盟RoHS指令 Complies with the EU RoHS Directive |
四、应用场景Application Scenarios
|

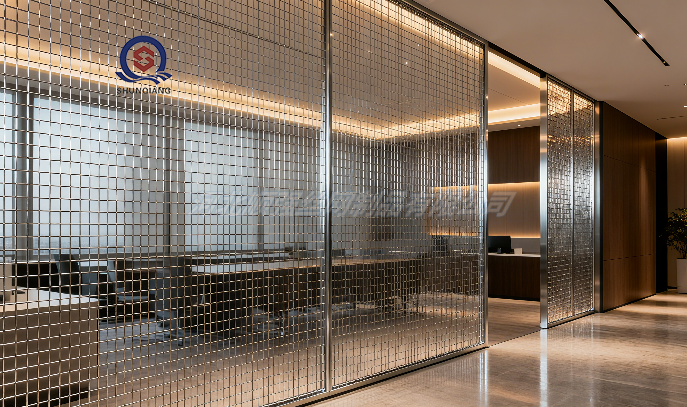

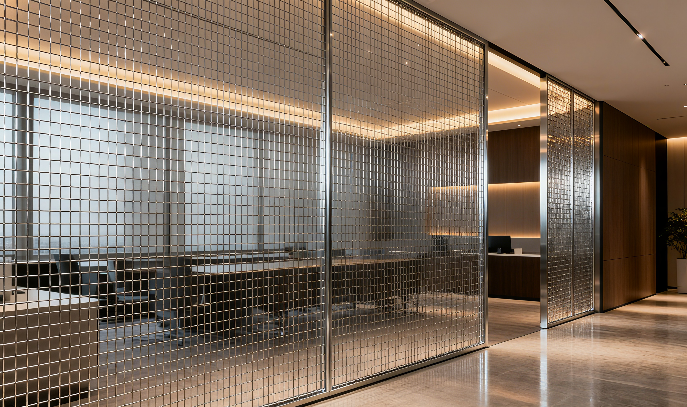

装饰领域 The field of architectural decoration |
用于建筑装饰工程 The curtain wall decoration project of Shanghai Tower |
|
|
汽车零部件 auto parts |
新能源汽车排气管网罩 Exhaust pipe network cover for new energy vehicles |
|
|
工业领域 Home furnishings and household appliances |
高端厨房水槽滤网 High-end kitchen sink filter |
|
|
基础件制造 Manufacturing of basic components |
各种冷镦件 All kinds of cold heading parts 如铆钉、排钉、卷钉等 Such as rivets, row nails, roll nails, etc |
|
