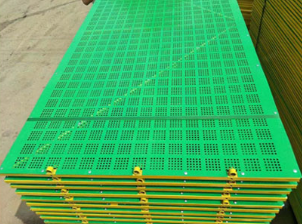

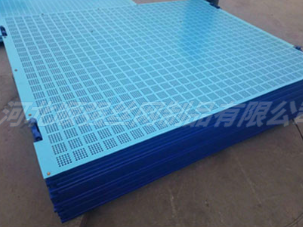

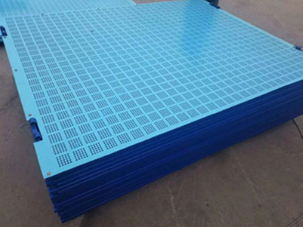

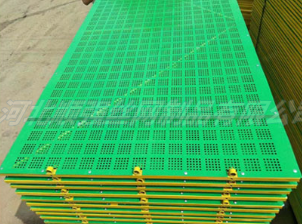

爬架网
一、产品概述General description
爬架网又称外架防护钢板网、硬质钢板网、安全防护网、建筑脚手架安全网，是一种新型的建筑行业安全防护装置，是传统密目安全网的升级替代产品，具有防火、防尘、隔音、抗冲击等特点，为工人提供全天候作业平台，助力项目降本提速，广泛应用于住宅、商业综合体、超高层建筑等领域。
Climbing scaffold net, also known as external scaffold protection steel plate net, hard steel plate net, safety protection net, and construction scaffold safety net, is a new type of safety protection device in the construction industry. It is an upgraded and alternative product to traditional close-mesh safety nets. It features fire prevention, dust prevention, sound insulation, and impact resistance. It provides workers with an all-weather working platform, helps projects reduce costs and speed up progress, and is widely used in residential buildings, commercial complexes, super high-rise buildings, and other fields.
二、生产工艺Production Process
镀锌板带经过制管、冲孔、下料、焊接、铆片、喷涂等工序制成成品。
Galvanized sheet and strip is processed into finished products through procedures such as pipe making, punching, blanking, welding, riveting and spraying.
三、产品参数（见下表）Product Parameter
1.常见规格尺寸参数Common specification and size parameters
|
常规尺寸（m） Standard size |
镀锌板厚（mm） Thickness of galvanized sheet |
镀锌边框(mm) Galvanized frame |
表面处理 Surface treatment |
重量(kg) Weight |
|
1.2*1.8 |
0.3 |
20*20*0.8 |
整体喷塑 |
7.7 |
|
1.2*1.8 |
0.4 |
20*20*1.0 |
整体喷塑 |
8.3 |
|
1.2*1.8 |
0.5 |
20*20*1.2 |
整体喷塑 |
11 |
|
1.5*1.8 |
0.5 |
20*20*0.8 |
整体喷塑 |
11.5 |
|
1.5*1.8 |
0.5 |
20*20*1.0 |
整体喷塑 |
13 |
|
1.5*1.8 |
0.5 |
20*20*1.2 |
整体喷塑 |
14 |
|
1.0*2.0 |
0.3 |
20*20*0.8 |
整体喷塑 |
7.3 |
|
1.0*2.0 |
0.4 |
20*20*1.0 |
整体喷塑 |
7.8 |
|
1.0*2.0 |
0.5 |
20*20*1.2 |
整体喷塑 |
10.5 |
|
以上均为常用规格，其他规格均可定制。The above are all common specifications. Other specifications can be customized。 |
||||
|
技术指标 Technical index |
数据指标 Data index |
行业优势 Industrial advantage |
|
网孔精度 Mesh accuracy |
孔径公差±0.5mm The aperture tolerance is ±0.5mm |
高于行业标准 Higher than industry standards |
|
抗冲击强度 Impact strength |
≥500KJ/㎡（GB/T 21728） |
适应高层建筑坠物防护需求 Meet the protection requirements for falling objects in high-rise buildings |
|
防火等级 Fire resistance grade |
A级不燃（GB/T 8624） Class A non-combustible (GB/T 8624) |
有效抑制施工火灾隐患 Effectively suppress the fire hazards during construction |
|
使用寿命 Service life |
≥15年（正常维护） ≥15 years (under normal maintenance) |
比传统网寿命提升3倍 Its lifespan is three times longer than that of traditional nets |

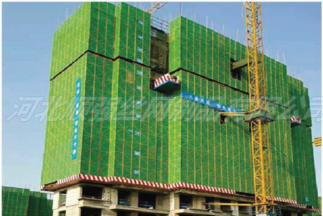

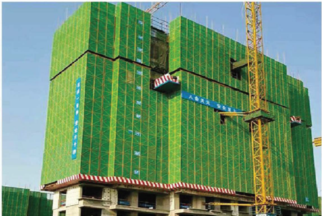

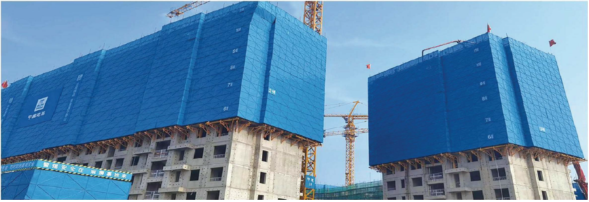

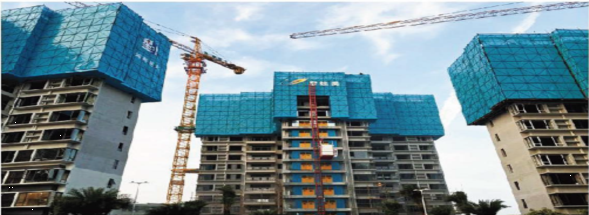

四、应用场景Application Scenarios
|
建筑工程领域 The field of construction engineering |
作为安全防护装置使用 Used as a safety protection device |
|
