不锈钢电焊网系列

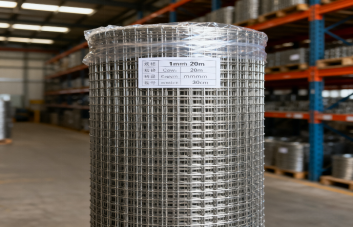

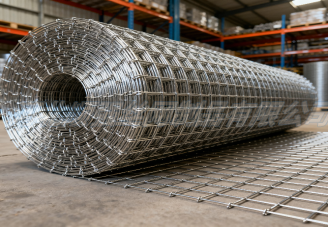

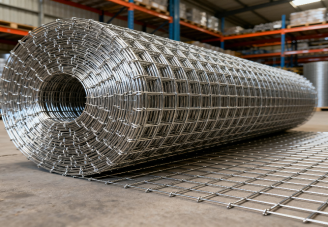

一、产品概述General description
不锈钢电焊网是通过自动化焊接设备将不锈钢丝交叉点熔融固定的网状结构产品，具有焊点牢固、网孔规整、抗拉强度高的特点，特殊规格可定制，产品广泛应用于建筑防护、工业筛分、食品加工、装饰等领域，是现代工程与制造的基础性防护材料。
Stainless steel welding mesh is a mesh-like product with a cross-point structure fixed by automated welding equipment. It features strong weld points, regular mesh holes, and high tensile strength. Special specifications can be customized. The product is widely used in building protection, industrial screening, food processing, decoration, etc., and is a fundamental protective material for modern engineering and manufacturing.
二、生产工艺Production Process
采用自动化焊接设备，通过调整设备电压、电流大小将不锈钢丝交叉点熔融固定，形成焊点牢固、网孔规整的网状结构。
By using automated welding equipment and adjusting the voltage and current of the equipment, the intersection points of stainless steel wires are melted and fixed, forming a grid structure with firm welding points and regular mesh.
三、产品参数（见下表）Product Parameter
|
网号 Wire mesh number |
网孔尺寸（mm） Mesh size |
丝径（mm）Wire diameter |
网边露头（mm） Edge length of the wire mesh |
|
|
丝径规格(mm) |
偏差(mm) |
|||
|
40x40 |
101.6x101.6 |
2.5-4.0 |
±0.08 |
≤2.5 |
|
30x40 |
76.2x101.6 |
|||
|
30x30 |
76.2x76.2 |
|||
|
20x30 |
50.8x76.2 |
|||
|
20x20 |
50.8x50.8 |
1.8-2.5 |
±0.04 |
≤2.0 |
|
10x20 |
25.4x50.8 |
|||
|
10x10 |
25.4x25.4 |
|||
|
04x10 |
12.7x25.4 |
1.0-1.8 |
≤1.5 |
|
|
06x06 |
19.05x19.05 |
|||
|
04x04 |
12.7x12.7 |
0.5-0.9 |
||
|
03x03 |
9.53x9.53 |
|||
|
02x02 |
6.35x6.35 |
|||
|
以上均为常用规格，其他规格均可定制。The above are all common specifications. Other specifications can be customized。 |
||||
|
技术指标 Technical index |
数据指标 Data index |
行业优势 Industrial advantage |
|
焊点强度 Solder joint strength |
单点拉伸强度稳定，焊接牢固 The single-point tensile strength is stable and the welding is firm |
高于低碳钢电焊网焊接强度30% The welding strength is 30% higher than that of low-carbon steel welded wire mesh |
|
网孔精度 Mesh accuracy |
经向网孔±5%，纬向网孔±2% ±5% for warp mesh and ±2% for weft mesh |
精度达国家领先水平 The precision has reached the leading level in the country |
|
经纬线垂直度 Perpendicularity of longitude and latitude lines |
纬斜≤20mm The latitude skew is ≤20mm |
网孔规整不易变形 The mesh is regular and not prone to deformation |
|
环保工艺 Environmental protection |
无有害物质排放 No harmful substances are discharged |
符合欧盟ROHS指令 Complies with the EU ROHS Directive |
四、应用场景Application Scenarios
|

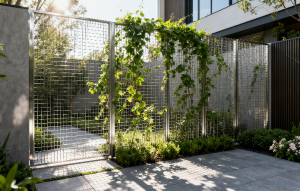

建筑防护领域 The field of building protection |
建筑行业用于路面加固 It is mostly used in the construction industry for fences and roads |
|
|

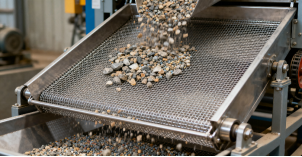

工业筛分领域 The field of industrial screening |
对颗粒块状物质进行筛分 Screen granular and blocky substances |
|
|

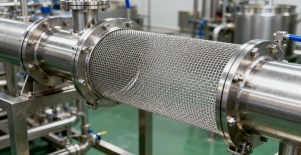

食品加工领域 The field of food processing |
食品生产线过滤网 Food production line filter screen |
|
|
日常生活领域 The field of daily life |
用作家禽笼、通道围栏、防鼠网等 Used as poultry cages, passage fences, rat-proof nets, etc |
|
